   Online Simulators


VOR
Simulator
v3

  The application will not work properly if your browser does not have at least version 8 of Flash
  If you do not have the latest version of flash you may visit www.adobe.com
  (formerly www.macromedia.com) and go to the downloads section for the latest
  plugin version or go via the direct link: http://www.adobe.com/go/getflashplayer


 Tip: Press F11 if you need to toggle full-screen on/off to view this page better in your browser. F11 works in Internet Explorer, Firefox, Opera and Netscape.





The VOR (VHF Omnidirectional Range) Simulator was designed to demonstrate the approximate indication that a VOR would display with varying positions of an aircraft in relation to certain navigational facilities.

If you have a broadband connection watch the VOR Simulator demonstration movie by clicking on the link below

VOR Simulator Holding Pattern Demonstration
(F
lash Required - Duration: 13 minutes - Size: 64 MB - broadband internet connection highly recommended)

Condensed Instructions: (printable version click here)

Select desired Navaid type and settings. Drag aircraft on horizontal or vertical panels to change the aircraft's position in relation to the facility. If North Up is selected aircraft heading changes can be set by positioning the cursor close to the aircraft on the horizontal panel then clicking the button when a "-" or "+" appears. If Heading Up is selected, aircraft heading changes can be set by positioning the cursor close to the navigational facility on the horizontal panel then clicking the button when a "-" or "+" appears.

Additionally there are two new ways to set the aircraft's heading:

1. Double clicking on the aircraft will cause a small window near the aircraft to open with the current heading in the edit box. Changing the value in the edit box to any value from 1 to 360 will change the aircraft heading to that heading.

2. Holding Shift key down and moving the cursor near the aircraft center will display a blue arrow extending from the center of the aircraft with the current direction of the arrow from the aircraft in degrees displayed on the line. While holding the Shift key down and moving the mouse cursor around the map, the arrow radiating from the aircraft will follow the mouse constantly showing the direction from the aircraft. Clicking the mouse button will change the aircraft heading to the current direction of the blue line. Release the Shift button to hide the blue line.

Knobs are set the same way as the heading of the aircraft (as described above), except that instead of placing the mouse on the aircraft symbol, the mouse is placed on the knob.

You can use the keyboard to control the movement of the aircraft. The following are the keys that control the aircraft:

IMPORTANT KEYBOARD CONTROL NOTE: The simulator start button must be pressed and the aircraft rotating-arround-the-globe icon must be moving for the keyboard commands to work. In addition, if clicking outside the simulator (like clicking on the browser scroll bar, text or any other area outside) the browser may stop sending the keyboard commands to the simulator. You must click on any blank portion of the simulator to allow the browser to transfer keyboard commands to it. You can also still drag and reposition the aircraft even if it is moving.

When Heading Up is selected, even though it may seem that the aircraft rotates around the navigational facility, the aircraft remains in the same position when changing heading. The reason for this is that the display will always show the navigational facility in the center of the display. This means that regardless if North Up or Heading Up is selected the aircrafts position will always be relative to the navigational facility.

Knobs are set the same way as the heading of the aircraft (as described above), except that instead of placing the mouse on the aircraft symbol, the mouse is placed on the knobs symbol.


General Explanation of Features:

  Compass Rose - Used as an aid to show the orientation of the Horizontal Navigation panel. It serves the same purpose
         as the compass rose symbol on IFR en route charts to show direction in relation to the magnetic north.

  To / From Region - Shows on the Horizontal Navigation panel the regions where the VOR flag will display
         To or From depending on where the aircraft is positioned.

  Show OBS CRS To / From - Shows a line indicating the direction of course "To" (blue) and "From" (green).

  Projection Flags - IFR approach plates have a profile view that displays the sideways vertical projection of the approach
         course. The projection flags serve to help visualize how and where this projection is made from the Horizontal Panel
         view. Notice how the aircraft moves on the Horizontal panel when it is dragged on the Vertical panel and vice
         versa. The movement is made in alignment with the projection flags.

  Horizontal Panel - Displays the horizontal position of the aircraft in relation to the navigational facility the same
         way an IFR en route chart or an approach plate's plan view would.

  Vertical Panel - Displays the vertical position of the aircraft in relation to the navigational facility the same
         way an approach plate's profile view would. It is used for several purposes:
            1. For the glide slope feature.
            2. The DME measures slant range distance from the aircraft to the facility. Being able to control the altitude allows
                you to determine its influence and consequently the error associated to it.

  Navigation Aid Type - Selects the type of navigational facility. Some features such as DME or glide slope will only work
         with certain types of facilities.

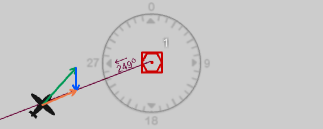

  Settings Section - Select and activate different feature such as setting wind, viewing wind triangle, zooming map and more.

  General Settings Section - Select and activate different feature such as setting wind, viewing wind triangle, zooming map and more.

  Other Settings Section - Contains additional settings such as the holding pattern template.

  Navaid Information - Displays information such as radial, OBS setting, and more.

  Performance - When using computers that that may be slower this section can be used to improve speed and processor
         usage by increasing preset parameters such as screen refresh rate and reducing size of the aircraft trace path. On faster
         computers you can take advantage of having smoother animation and a larger trace path.

  Memory - Allows you to save a snapshot of aircraft position and settings to memory. In most browsers the memory will remain even
         if you close the page and load it again later so you can continue where you left off. Note: for users of luizmonteiro.com's
         Navigation simulator the Memory function is not retained when the simulator is closed, since you can save the settings to a file.

*Please note that DME may not be present together with localizer, back course localizer, LDA or SDA approaches. The DME distance shown is the approximate value a DME would indicate if such navigational facility were collocated.

CAUTION: The behavior of the VOR and other information displayed is approximate for illustration purposes only and may not reflect the actual readings on the VOR and DME.




Main New Features



1. The six primary instruments are included
(ASI, AI, Altimeter, TC, HI and VSI)




  2. Labels on map to show radials, courses and other information


  3. Execute holding patterns using a holding guide



4. Three ways to set knobs




5. Three ways to change heading



  6. DME instrument shows distance, speed and ETA at navaid


  7. Save a snapshot of aircraft position and settings
(in most browsers memory will remain even if you close the page and load it again later so you can continue where you left off)
